CODE


Testing in progress
Next Race Frontier 500 April 18-21, 2024

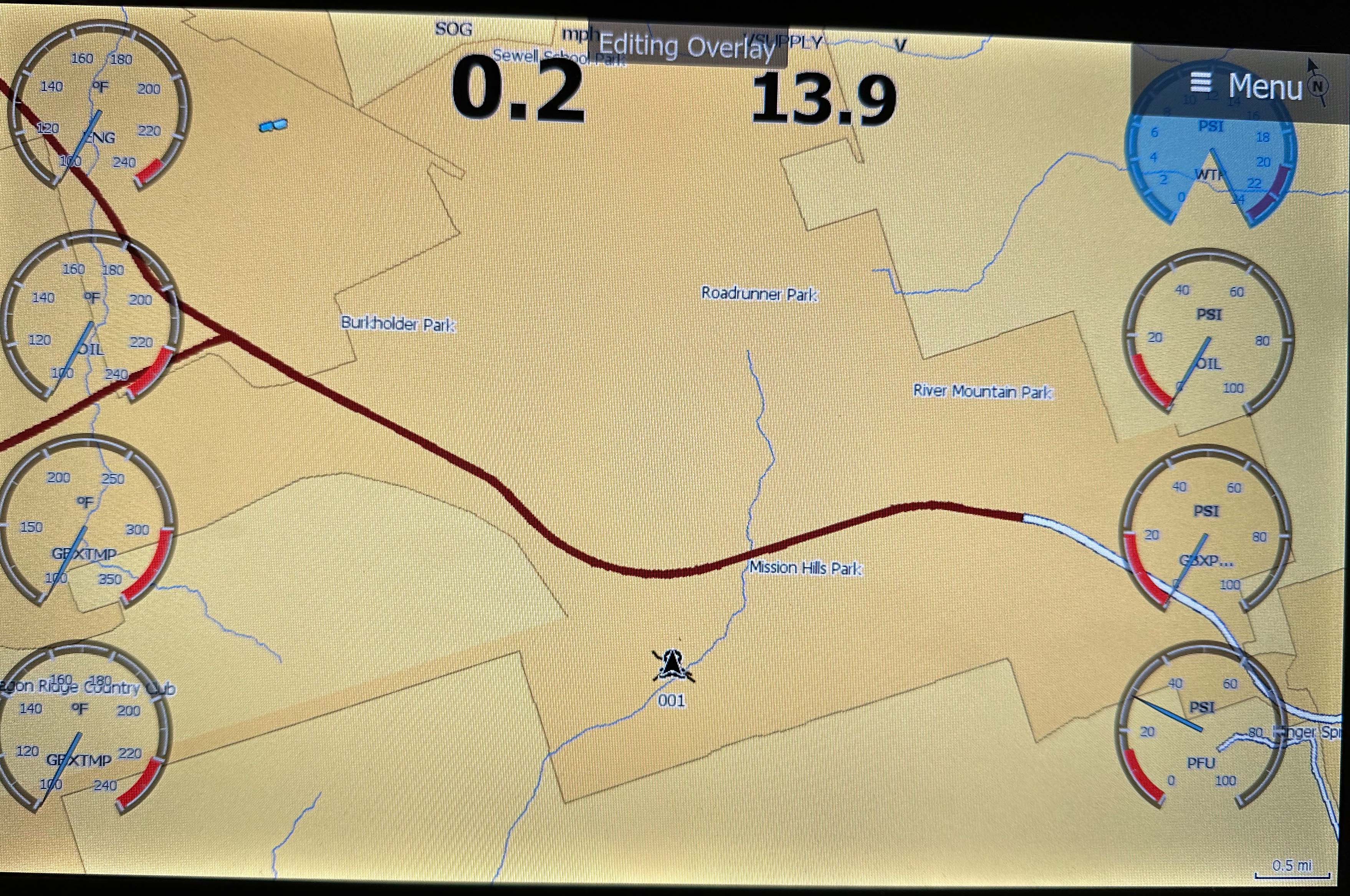

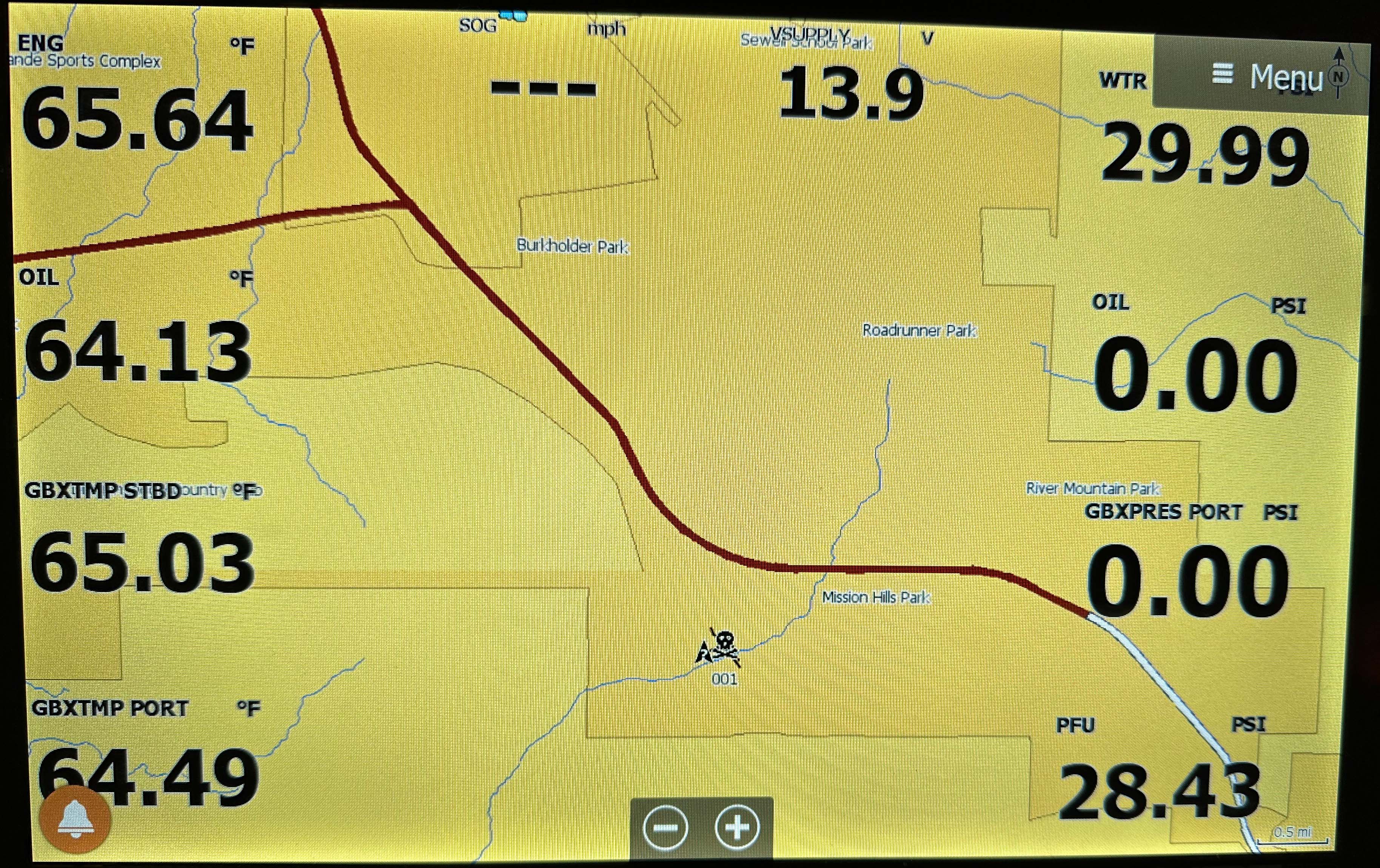

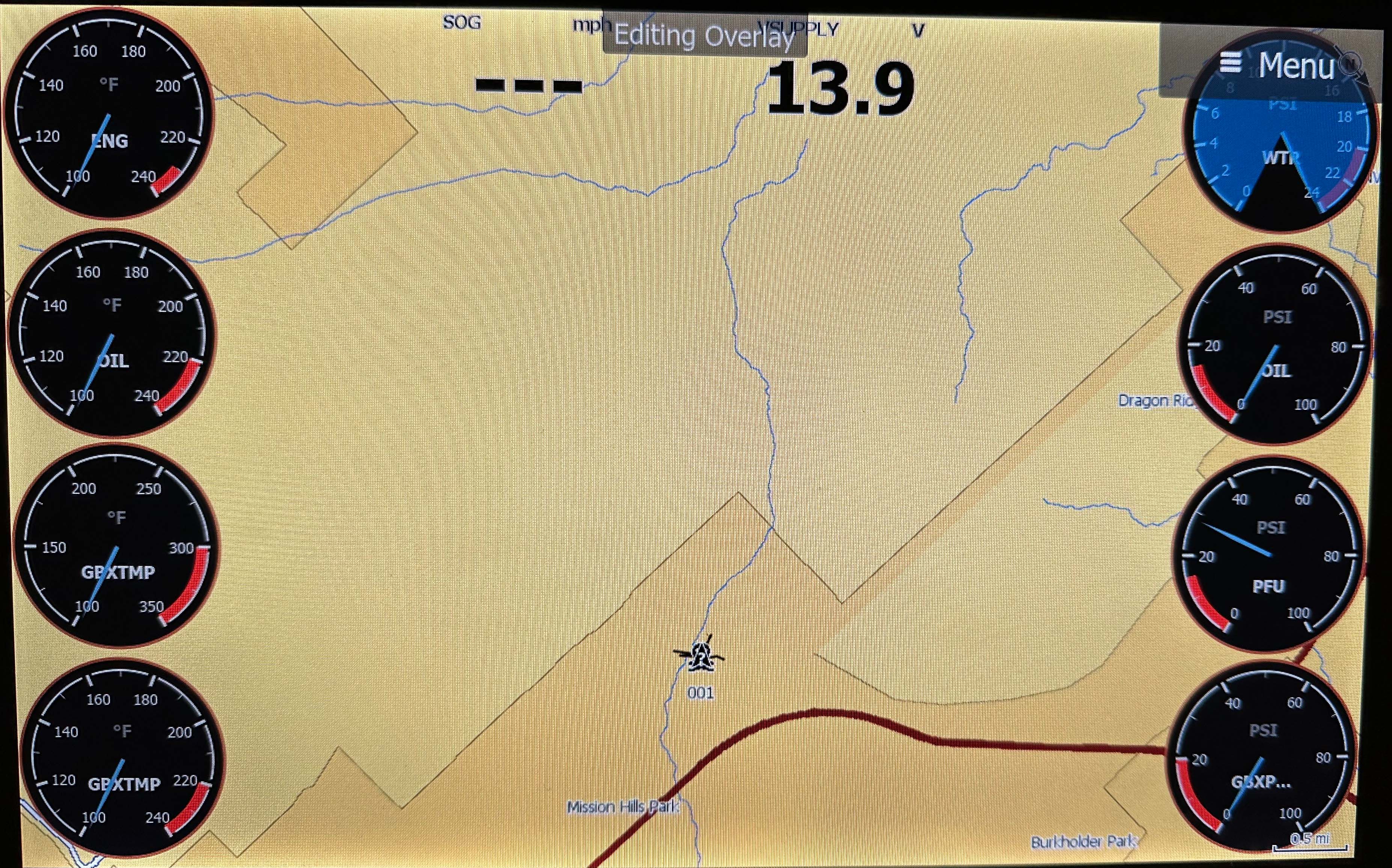

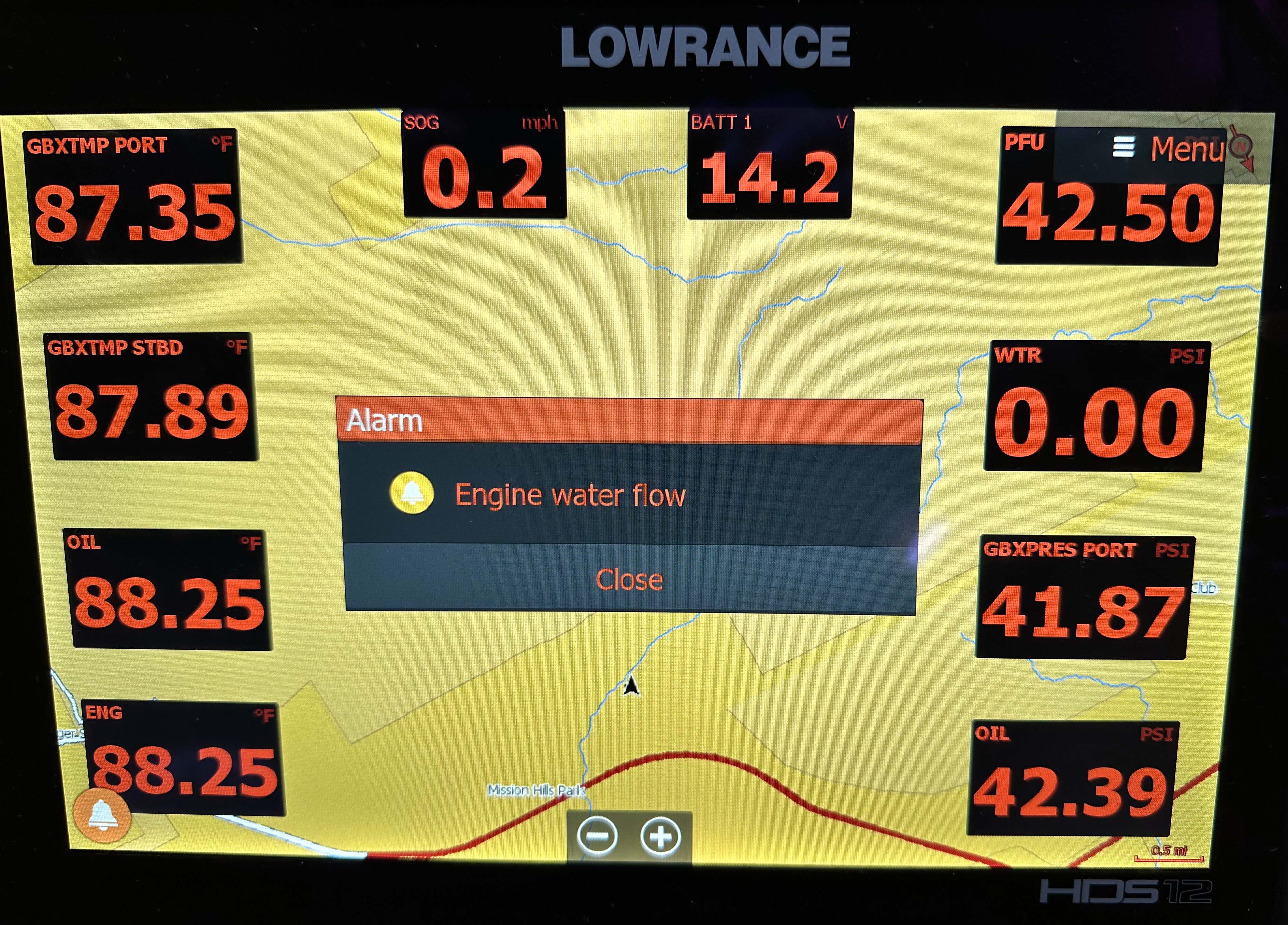

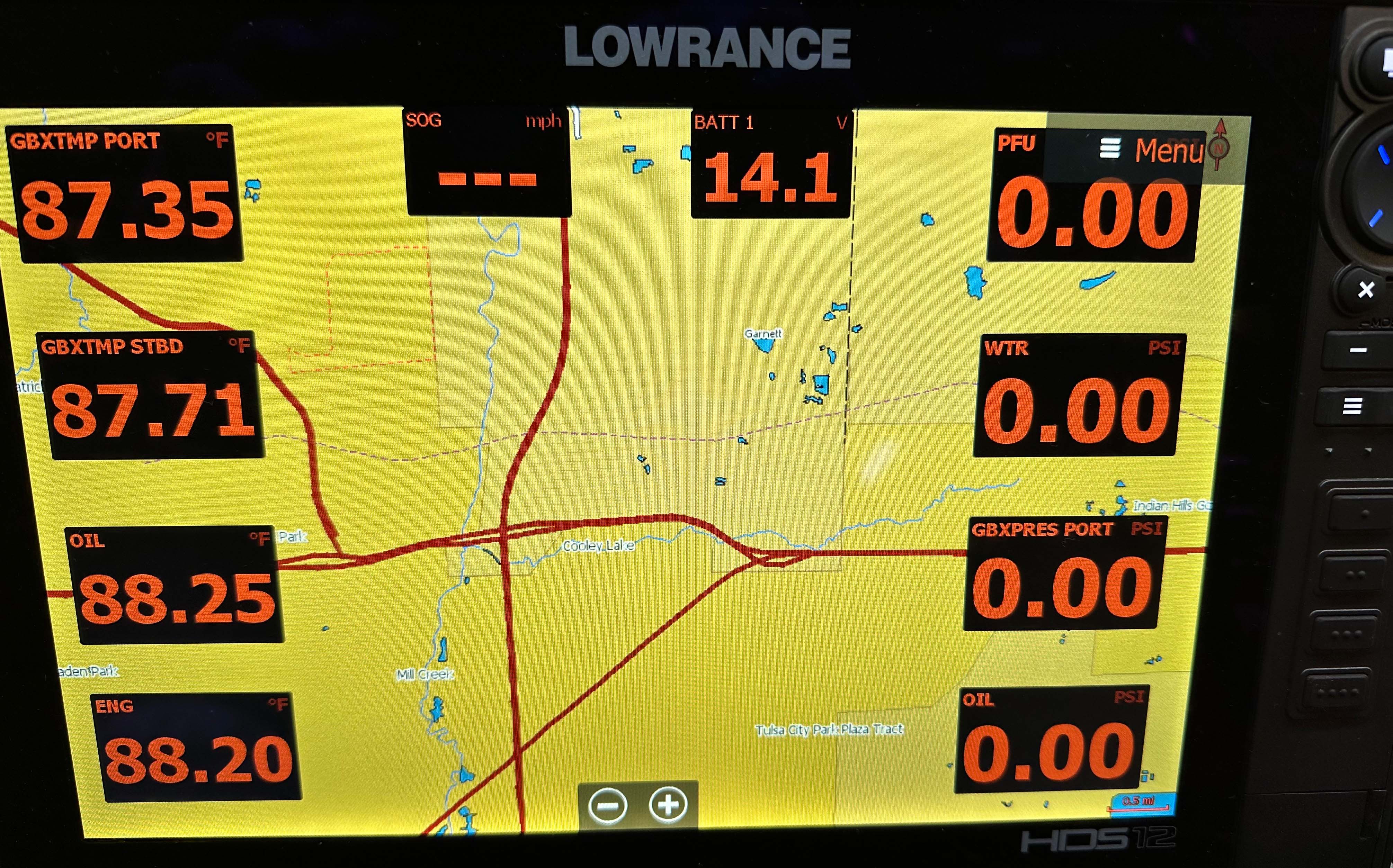

Code is a data acquisition system that displays data and alarms on your Lowrance GPS. Code was developed by a co-driver for co-drivers. It puts all the needed data in one place. It allows the co-driver to focus on one screen instead of 8 different gauges, or in many cases a seperate data screen. The alarms that populate the GPS are programmed to the specification of the race car equiptment or owners preference. The co-driver can be confident the equiptment will alert them if any sensor is out of range. Code works on the lowrance backbone for power and connection to the network. One NMEA 2000 drop cable is all that is required to connect to the GPS network. All GPS units on the network will receive the same features.



lowrance lowrance2
manbz mannbez

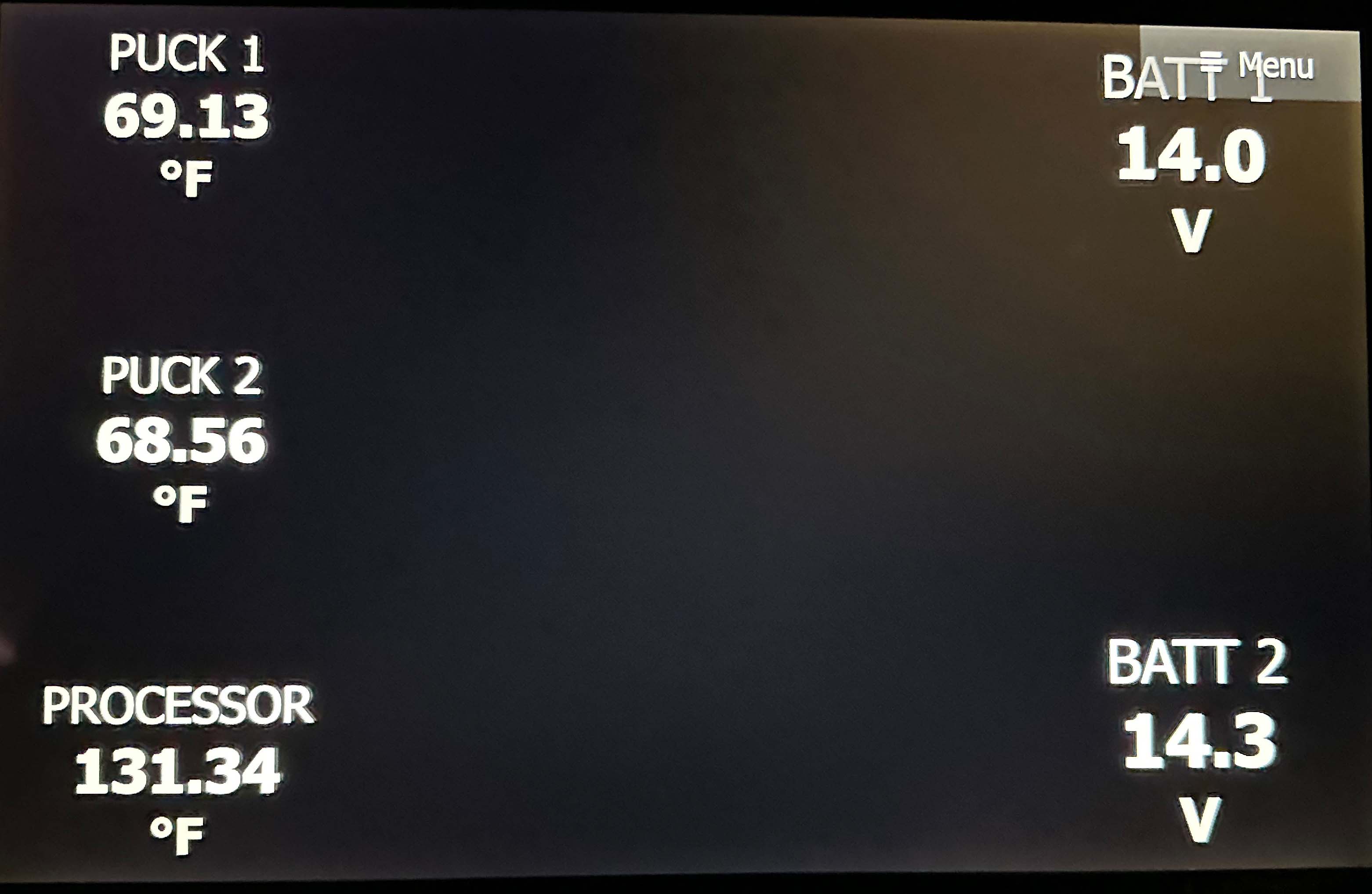

mnobez ptemps
tpms








CODE FEATURES

4. Pressure sensors 0-100PSI

4. Temperture Sensors (RTD -199F to 500F with less than 1degree error through out the span)

6. TPMS sensors

Temp and PSI Sensor wires are stainless steel braided cable rated at 570F

1. RPM Input

2. Battery Inputs

2. Ignition Inputs

1. Alarm output ( To sound a speaker or illuminate a warning light)

Pucks with quick connectors and onboard temperture sensors.

Data Logging of all sensors with 1 second intervals.

Optional LED Bar (Back up if Lowrance fails)







puckcon puck1

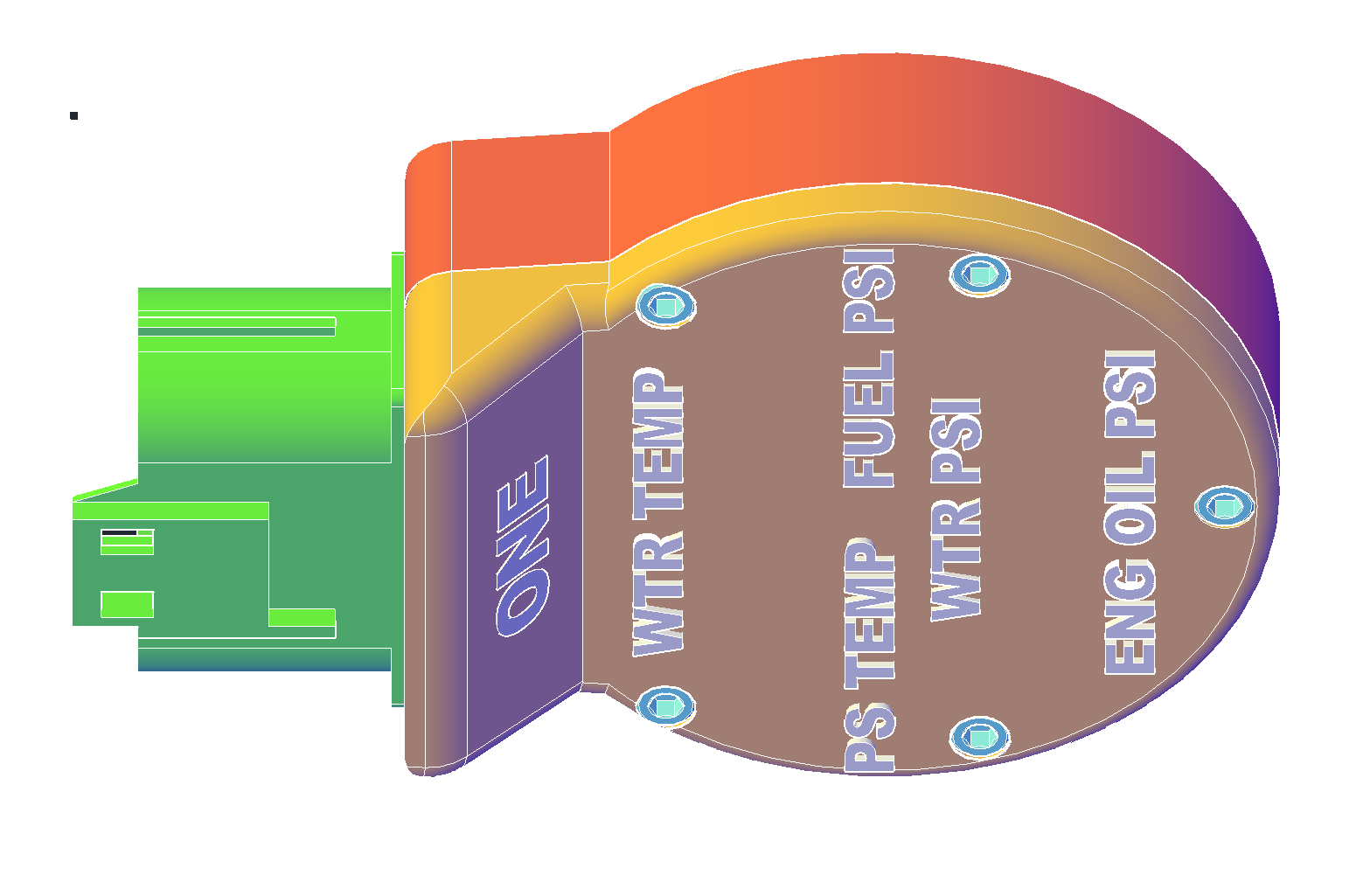

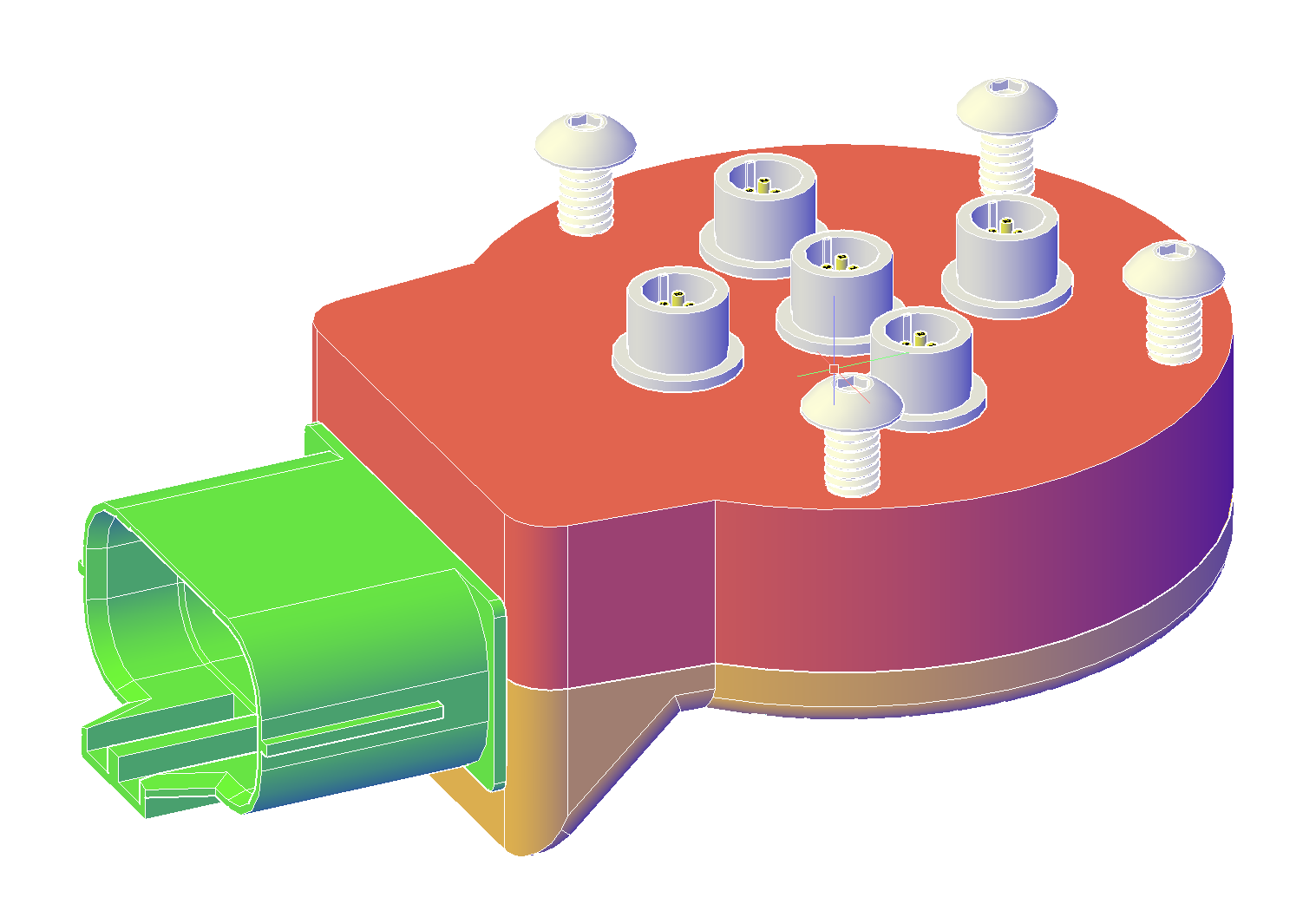

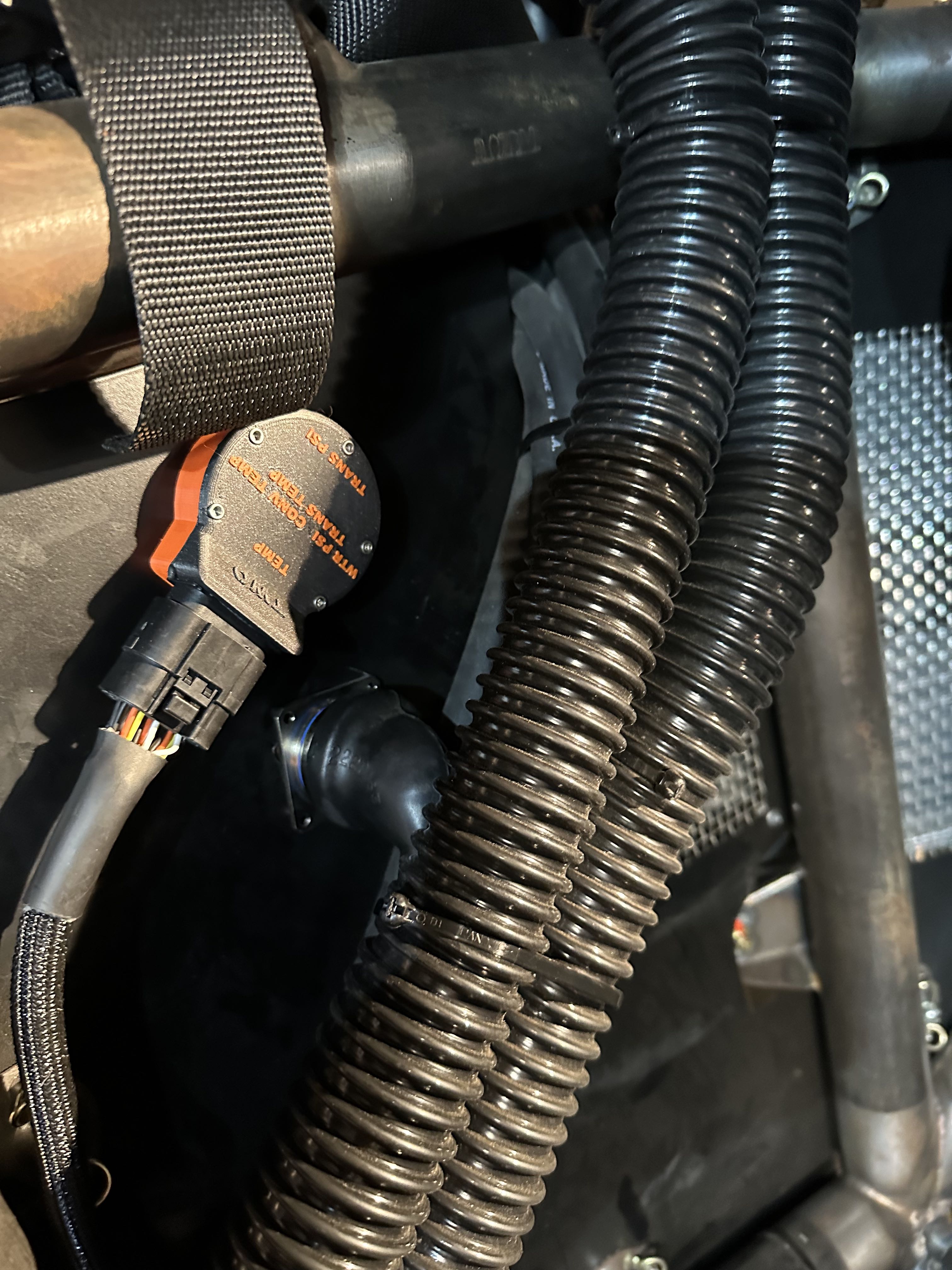

PUCKS

Pucks are how we get the sensor wires to there location. Pucks can be mounted to the fire wall or any flat surface. Pucks come with a drill template for easy installation. The Pucks have a 18 pin automotive rated connector.





ledbar

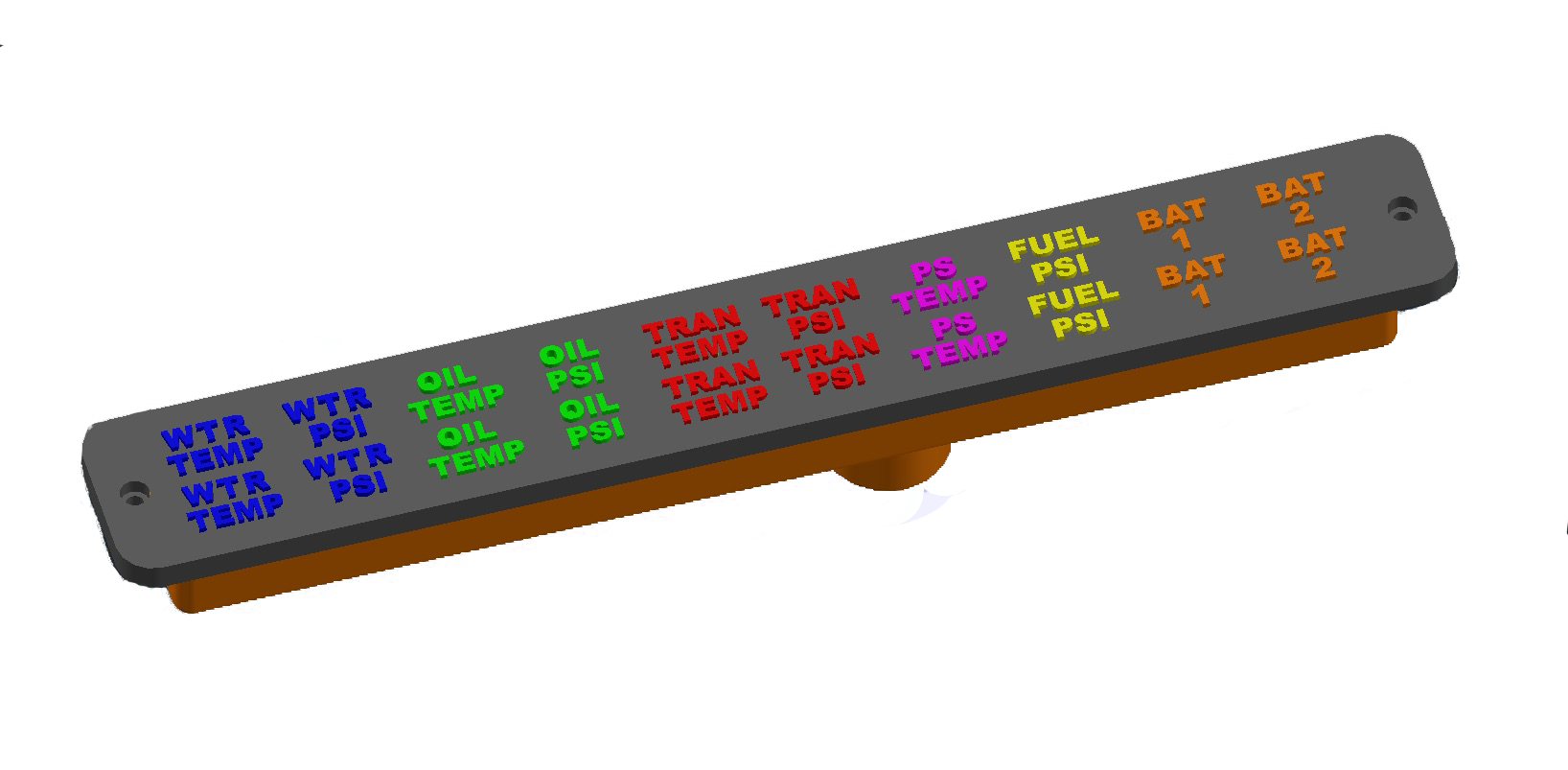

LED BAR

The LED bar has 20 RGB lights. the bar is a back up indicator for the Lowranc. If the Lowrance has issues or stops working you can continue racing with the information from the LED bar. Code is designed for racing and has two levels for alerting the co-driver. The top 10 LED lights are flag. The flags are to alert you that sensors are reaching there high limits but everything is ok to keep racing. The bottom 10 LED are alams and if ignored catostophic damage can occure. Flags and alarms are programmed to the specification of the race cars equiptment or owners preference.





tpms

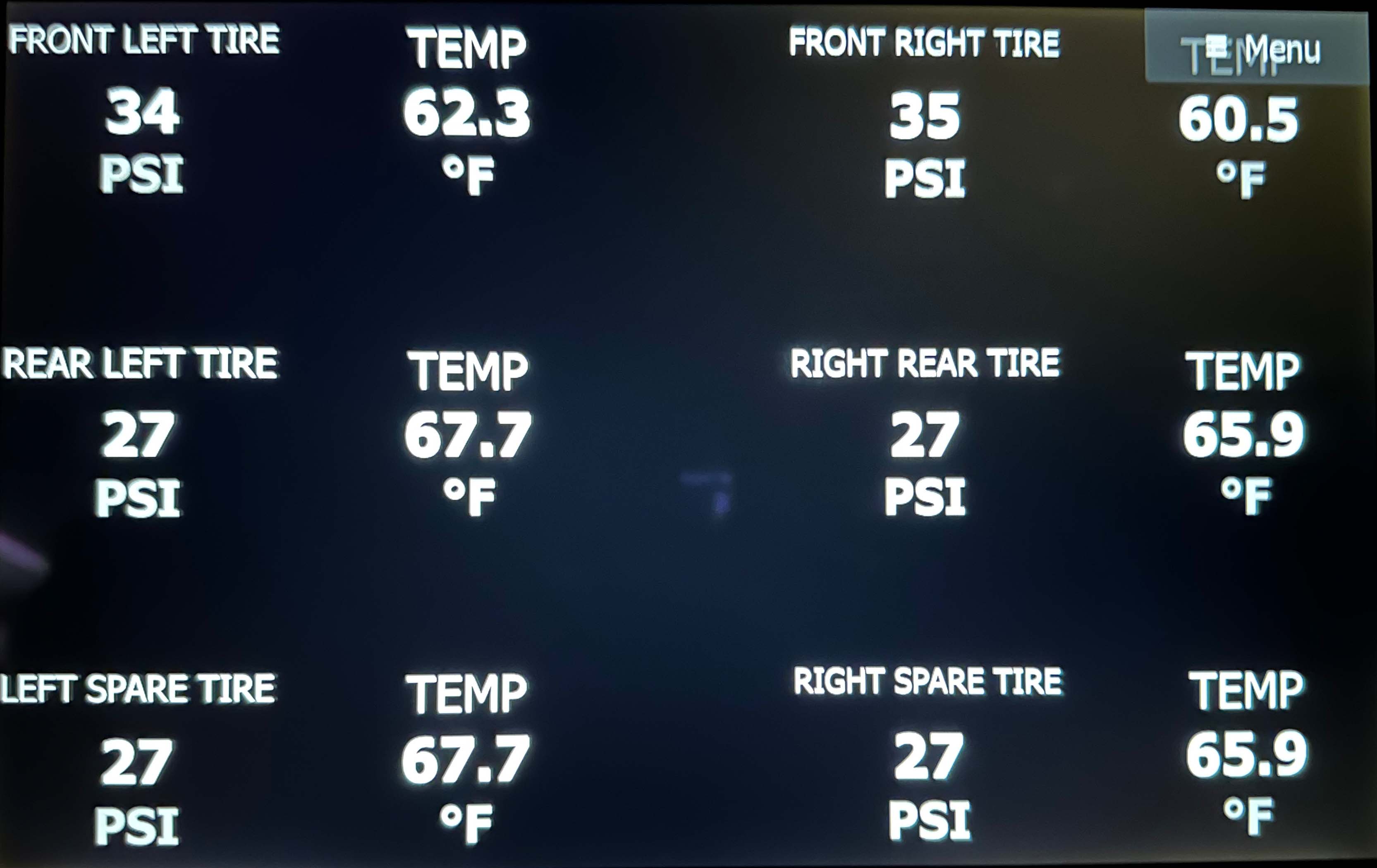

TPMS

TPMS supports internal and external sensor. 6 sensor cover the race cars tires, and two spare tires. The TPMS sensors also show tire temperatures and all values are datalogged.








controlbox controlbox2

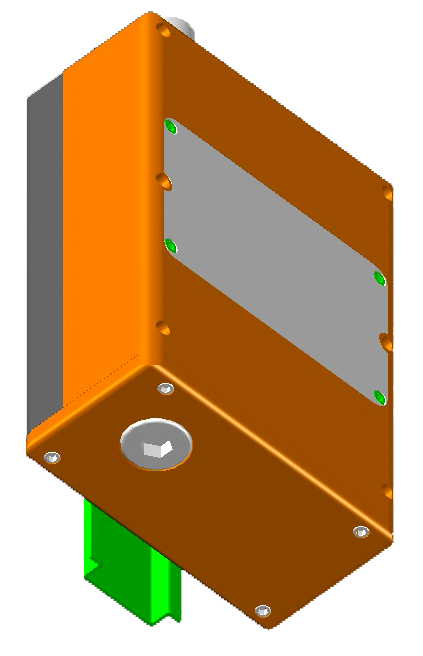

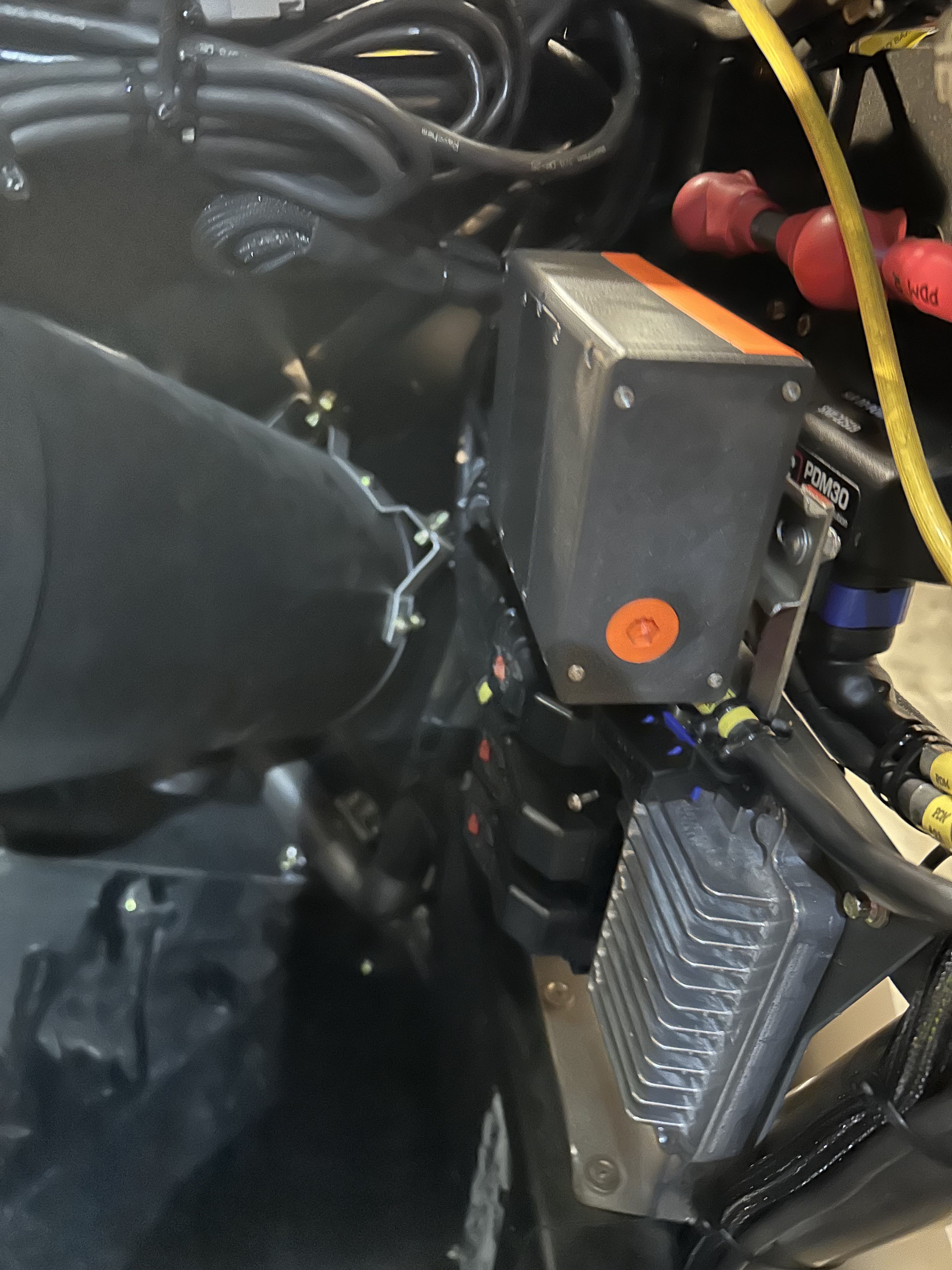

DATA ACQUISITION MODULE

The module holds the brains of the system and mounts using din rail. The din rail can be welded or bolted to fasten the module. The module has a 34 pin automotive rated
connector and a NEMA connector for connecting to the Lowarance backbone.









Code is still in its testing phase. Below is the video of the first race with it installed in our race truck. It performed great with no issues. We continue to upgrade the hardware and software and are getting closer to releasing it to the racing community.

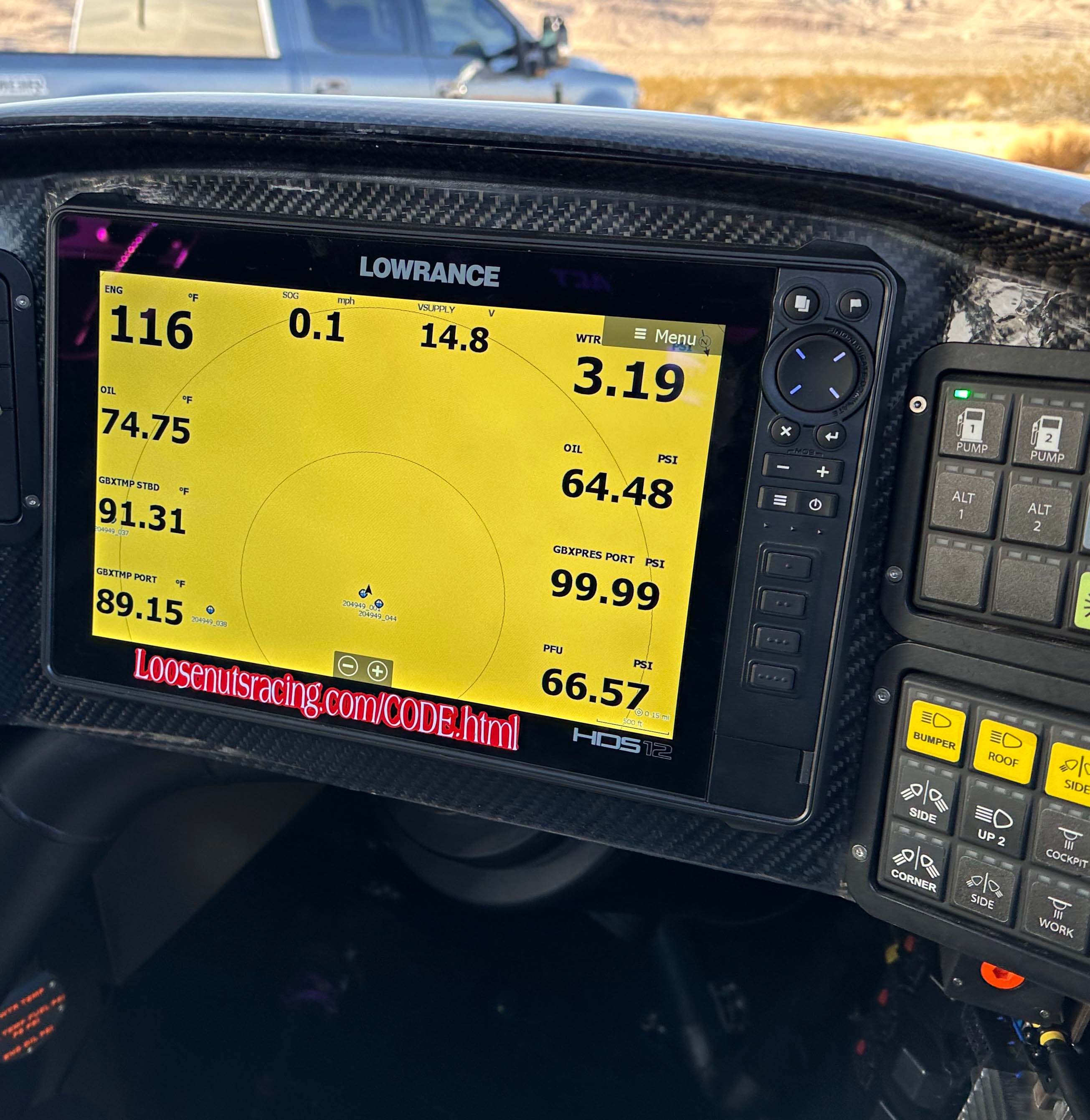

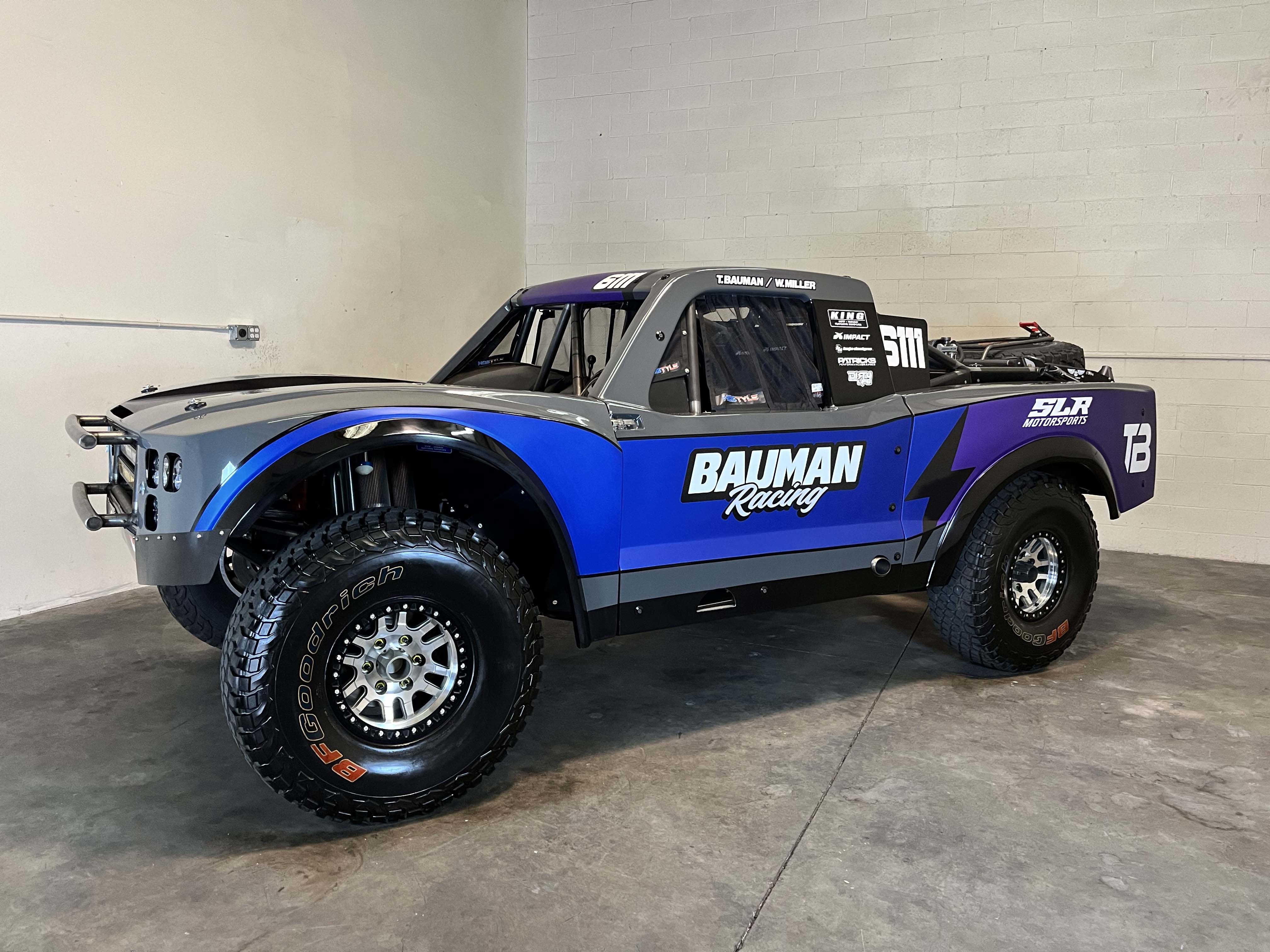

Code is also installed for testing in Todd Bauman new class 6000 3 seater spec truck built by Specer Low

6111

6111cab

mbox

1puck





LNR 8021 CODE TESTING


Code data logs all sensors and you can use the .csv file to overlay your gauges onto your race videos.
